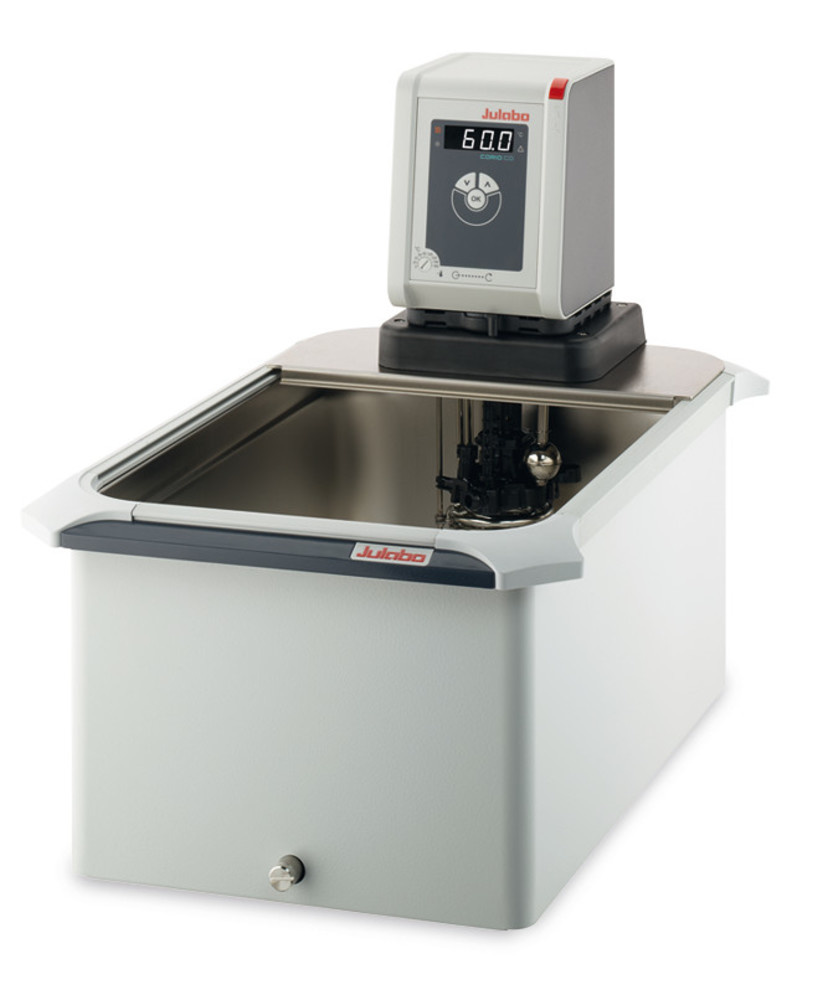

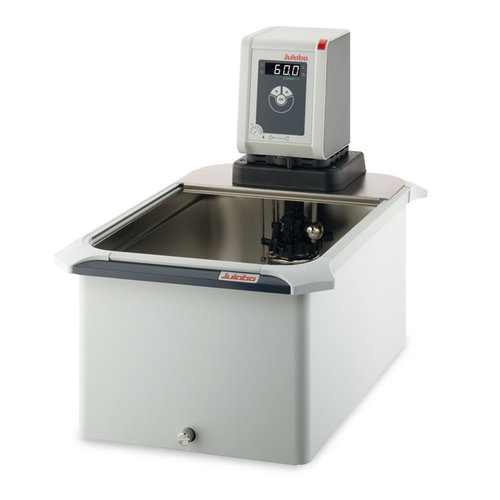

Bath/circulation thermostat CORIO CD-B series, 17-27 l, CORIO CD-B27

Quantity
Product
Price
Details
1 Piece
€2.121,00 Excl. tax
€2.566,41 Incl. tax
Article codeCYA0.1
SKUCYA0.1
Information
Bath/circulation thermos. CORIO(TM) CD-B27 bath opening 300 x 350 mm incl. stainless steel bath For internal standard applications. Flexible use, e.g. with changing baths. External pump connections with 2 hose tubes each for hoses with an inner Ø 8 and 12 mm Easy switch between internal and external circulation USB connection Integrated drain screw (except model CD-B5) Technical data: Model CD-B5 ➀ CD-B13 ➁ CD-B27 Working temperature (°C) +20 to +150 Temperature constant (K) ±0.03 Display resolution (°C) 0.1 Setting resolution (°C) 0.1 Heating capacity (W) 2000 Capacity max. (l/min) 15 Max. pump pressure (mbar) 350 Bath opening (mm) bath depth (mm) 150 x 150 150 300 x 180 150 300 x 350 200 Bath volume (l) 3 to 5 9 to 13 17 to 27 Dimensions W x D x H (mm) 230 x 380 x 410 380 x 400 x 420 380 x 580 x 470 Safety class III (FL) III (FL) = flammable liquids) Delivery incl. stainless steel bath.
