bScope for bright field

MODELS	Monocular	Binocular	Trinocular	HWF 10x/20 mm eyepieces	Quadruple nosepiece E-plan 4/10/S40 S100x	Quadruple nosepiece Plan 4/10/S40 S100x	Quintuple nosepiece E-plan IOS 4/10/S40 S100x	Quintuple nosepiece Plan IOS 4/10/S40 S100x	Köhler NeoLED™	NeoLED™	2-position swivelling ergo head	Rechargeable batteries
BS.1151‑EPL	•			•	•							o
BS.1152‑EPL		•		•	•					•		o
BS.1153‑EPL			•	•	•					•		o
BS.1152‑EPLi		•		•			•		•		•	o
BS.1153‑EPLi			•	•			•		•		•	o
BS.1151‑PL	•			•		•						o
BS.1152‑PLi		•		•				•	•		•	o
BS.1153‑PLi			•	•				•	•		•	o

$$$$$

EYEPIECE(S)
High wide field HWF 10x/20 mm secured eyepiece(s) with 20 mm field of view. The eyepiece of monocular models is supplied with pointer

HEAD
• The bScope is equipped with a monocular head (45° inclined Ø 23.2 mm tube) or with a Siedentopf type head, 360° rotatable, with 30° inclined Ø 23.2 mm tubes
• Binocular and trinocular models are equipped with a diopter ± 5 adjustment on left eyepiece
• The interpupillary distance is adjustable between 48 to 76 mm
• The models equipped with plan infinity corrected PLi objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of the eyepieces in a high and in a low position
• The trinocular head comes with a Ø 23.2 mm photo port, ensuring maximum flexibility. The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging
• The digital models are equipped with a 5.0 MP 1/2.5 inch CMOS USB-2.0 camera

NOSEPIECE
Revolving and reversed ball-beared quadruple or quintuple nosepiece

OBJECTIVES
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives

•  Brightfield models: E-Plan, Plan, E-plan IOS infinity corrected, Plan IOS infinity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S60x/0.85 and S100x/1.25 oil immersion objectives

•  Phase contrast models: E-plan Phase, E-plan Phase IOS infinity corrected, Plan Phase IOS infinity corrected 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives

All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control

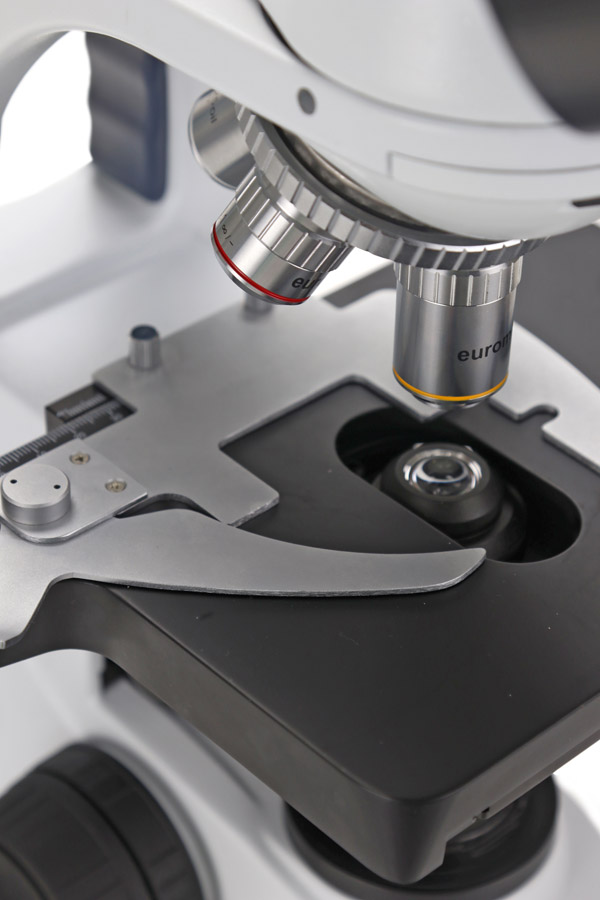

STAGE
• The bScope is equipped with a scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
• The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions. The bScope can be equipped with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with newly purchased microscopes

CONDENSER FOR BRIGHTFIELD
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder

ZERNIKE CONDENSER FOR PHASE CONTRAST
The in height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for brightfield contrast. Phase contrast objectives in either EPL-PH, EPL-PHi or PL-PHi phase contrast versions. Supplied with alignment telescope and green filter

CONDENSER WITH SLIDER(S) FOR  PHASE CONTRAST
The in height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40x phase contrast objectives OR a slider for 20/S100x phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser also includes a BF position for brightfield contrast.  Phase contrast objectives in either EPL-PH, EPL-PHi or PL-PHi  versions. Supplied with alignment telescope and green filter

POLARISATION
The bScope has an integrated slot above the nosepiece for an optional polarization filter

ILLUMINATION
The microscopes of the bScope are equipped with a 3 W NeoLED adjustable illumination system for increased light output and a 100-240 Vac integrated power supply. On request, rechargeable batteries are also available

NEOLED™ ILLUMINATION
The 3 W adjustable Köhler NeoLED diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use.The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime

KÖHLER ILLUMINATION
A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source

The Köhler illumination is optional for non-IOS models

__________

BSCOPE® DIGITAL
• Binocular model
• Integrated 5.0 MP CMOS color USB.2 camera
• 2592 x 1944 pixels
• 7 frames per second (2592 x 1944 pixels)
• 27 frames per second (1280 x 960 pixels)
• ImageFocus Alpha software

CAMERA
The digital bScope microscopes are equipped with a 5.0 MP 1/2.5 inch CMOS USB-2.0 camera, 24 bits color depth, 7 frames per second (2592 x 1944 pixels) or 27 frames per second (1280 x 960 pixels). Dynamic range is 76 db and signal/noise ratio 41 db. Supplied with ImageFocus Alpha software, USB-2.0 cable and a micrometer 1mm/100 calibration slide

SOFTWARE
The capture and analysis ImageFocus Alpha software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos. Measurements and annotations can be done on live or captured images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations. A Mac OS version is also available. Free updates can be downloaded from our website

Further specifications are identical to the analog bScope® models

__________

CORDLESS USE
The optional rechargeable batteries turn the bScope into a cordless system

CSS – CABLE  STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage

CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

ANTI-THEFT SLOTAt the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

PACKAGE CONTENT
Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil.

Phase contrast models are supplied with green filter and alignment telescope. An optional aluminum case can be supplied

%%%%%

Accessoires
