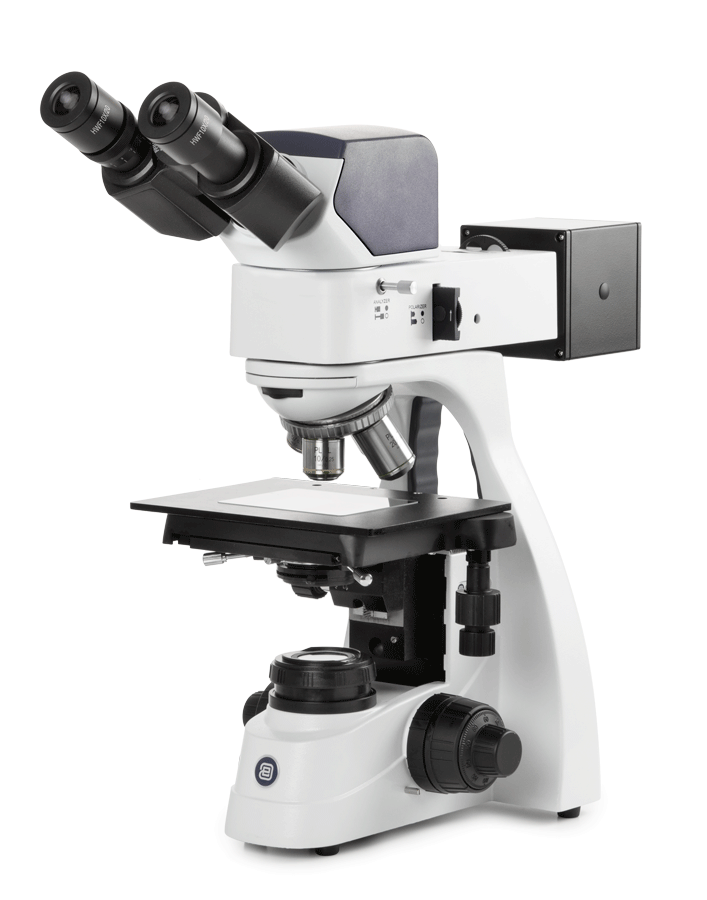

bScope materials science (metallurgical)
- Buy 2 and save 5%
The well-equipped bScope® microscopes for materials science are especially configured for observation of all kinds of materials such as metals, plastics, wood, glass, etc.
These microscopes are extensively used in the materials research and quality assurance laboratories
The design of the bScope® is both ergonomic and evolutive. Wide field WF 10x/22 mm eyepieces and low focusing controls to minimize fatigue during long working sessions and therefore provide more comfort for microscopists. The robust and compact size of the bScope® together with the Cable Storage System allow more working space, safer operation and easy storage
Icons are used to indicate the several functions of a microscope.
Click and find more details about the meaning of each icon
Highlights
- Materials science microscopes
- Trinocular models
- WF 10x/22 mm eyepieces
- Digital models available
- Reversed ball-bearing quadruple nosepiece with slot for polarization filter
- Plan M-IOS objectives
- Polarizer and analyzer filters
- Rackless integrated X-Y mechanical stage
- 3 W NeoLED™ adjustable transmitted and reflected NeoLED™ illumination
- Integrated carrying grip
- Cable Storage System and anti-theft system
Optional: PLMi 100x IOS objective
All models can optionally be supplied with three AA rechargeable batteries
$$$$$
EYEPIECES
Wide field WF 10x/22 mm eyepieces with 22 mm field of view (Ø 30 mm tube)
HEAD
The bScope® is equipped with:
• a Siedentopf type head, 360° rotatable
• 30° inclined tubes
• a ± 5 diopter adjustment on left eyepiece
• The interpupillary distance is adjustable between 48 to 76 mm
• The trinocular head comes with a Ø 23.2 mm tube, ensuring maximum flexibility
• The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging
• The trinocular head has a light path selector (100:0 / 0:100) and generates an erect image
• The digital models are equipped with a 5.1 MP 1/2.5 inch CMOS USB-2.0 camera
The interpupillary distance is adjustable between 48 to 76 mm. The trinocular head comes with a Ø 23.2 mm tube, ensuring maximum flexibility. The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging. The trinocular head has a light path selector (100:0 / 0:100) and generates an erect image
NOSEPIECE
Revolving and reversed ball-bearing quadruple nosepiece
OBJECTIVES
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope® objectives enable the bScope® to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure perfect centering of the objectives
Infinity corrected achromatic DIN plan M-IOS 5x/0.12, 10x/0.25, 20x/0.40, 50x/0.70 IOS objectives. Optional plan M-IOS S80x/0.80 and S100x/0.85 DIN IOS objective are also available
The S80x and S100x objectives are spring loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
• Double coaxial, low-positioned coarse and fine adjustments with 180 graduations.
• Precision 1.1 µm, 200 µm per rotation, total travel range is approximately 19 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustment is equipped with friction control
STAGE
• The bScope® is equipped with a scratch resistant185 x 140 mm stage with integrated 74 x 48 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
• The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatigue during long working sessions
CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder
POLARIZATION
The bScope® has an integrated slot above the nosepiece for an optional polarization filter for transmitted illumination
NEOLED™ REFLECTED ILLUMINATION
Reflected intensity adjustable 3 W NeoLED™ Köhler illumination with external power supply, push-pull type rotatable polarizer and push-pull analyzer, built-in condenser with iris diaphragm and field iris diaphragm. Integrated rotating filter disc with green, blue, yellow and white filters
NEOLED™ TRANSMITTED ILLUMINATION
The 3 W adjustable Köhler NeoLED™ diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use. The innovative NeoLED™ design offers larger apertures, allowing the optical system of the bScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED™ is the low energy consumption, no heating and a long operating lifetime
KÖHLER ILLUMINATION
Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. Generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source
__________
BSCOPE® METALLURGICAL DIGITAL
• Binocular model
• Integrated 5.0 MP CMOS color USB.2 camera
• 2592 x 1944 pixels
• 7 frames per second (2592 x 1944 pixels)
• 27 frames per second (1280 x 960 pixels)
• ImageFocus Alpha software
CAMERA
The digital bScope microscopes are equipped with a 5.1 MP 1/2.5 inch CMOS USB-2.0 camera, 24 bits color depth, 7 frames per second (2592 x 1944 pixels) or 27 frames per second (1280 x 960 pixels). Dynamic range is 76 db and signal/noise ratio 41 db. Supplied with ImageFocus Alpha software, USB-2.0 cable and a micrometer 1mm/100 calibration slide
SOFTWARE
The capture and analysis ImageFocus Alpha software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos. Measurements and annotations can be done on live or captured images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations. A Mac OS version is also available. Free updates can be downloaded from our website
Further specifications are identical to the analog bScope® models
__________
CORDLESS USE
The optional rechargeable batteries turn the bScope® into a cordless system (only available for the transmitted illumination)
CSS – CABLE STORAGE SYSTEM
This system allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGE CONTENT
Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter and user manual
%%%%%
