Extraction system Model AA, AA 02

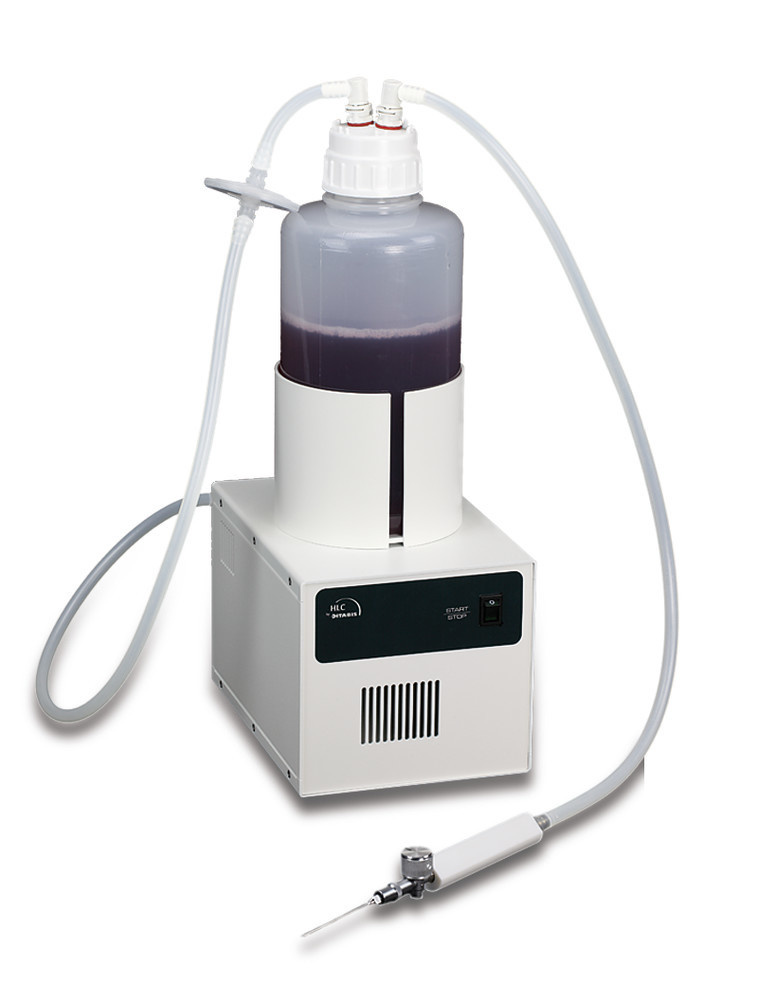

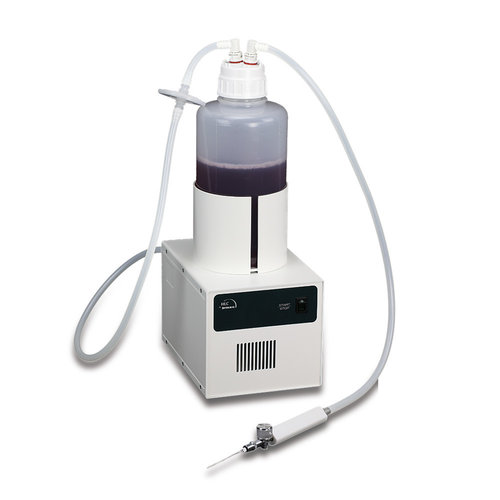

Vacuum safety extraction system AA 02 17 l/min, 100 mbar incl. vacuum pump with aluminum housing, PP 2 l collection bottle, quick couplings, silicone hose, safety filter, aeration insert, handle with trumpet valve For safe extraction of liquids with.b vacuum. Basic equipment: Vacuum pump Collection bottle made of PP, vacuum resistant, autoclavable Screw cap with 2 quick release couplings for closing the collection bottle after removing the hose Fan module for pressure compensation when autoclaving the collection bottle Safety filter to protect the vacuum pump and surroundings 3-m silicone hose for placing the extraction system outside the workbench Technical data: Type ➀ AZ02 / AZ04 ➁ AC02 / AC04 ➂ AA02 / AA04 Suction power (l/min) 8 25 17 Final vacuum abs.. (mbar) 700 250 100 Additional sampling places (optional) - 1 1 to 3 Housing dimensions W x D x H (mm) 75 x 170 x 60 170 x 220 x 155 170 x 220 x 155 Weight (kg) 1.5 4.5 5.5 Mains connection 230 V, 50 Hz ➀ Type AZ Simple system for sucking up small quantities Application of Pasteur pipettes directly to the hose Metal standard for collection bottle a.u.b. order separately ➁ + ➂ Type AC/AA Housing made of lacquered aluminium Compact construction, safety bottle holder mounted on powerful vacuum pump For more sampling positions suitable ➂ Additional equipment features with Type AA Handle with trumpet valve AH 01 for connecting different extraction instruments and mechanical control of the flow rate, i
