Measuring magnifiers (Reticle)
Staffelkorting
- Buy 2 and save 5%
- Buy 6 and save 10%
Product information
Handleiding
Technical specifications
Information
A measuring magnifier is a simple, small magnification device used to see small details
Measuring loupes and magnifiers are precision tools for making precise measurements and detailed inspection when precision counts. Euromex have the best selection of professional measuring magnifiers, loupes, and comparators
Highlights
- For professionals
- Magnification 4 - 10x
- Different scales
- Eyepiece Ø 18 - 30 mm
| MODELS | Magnification | Eyepiece | Field of view | Measuring scale | Graduations | Other | |
| PB.5044 | 7x | Ø 18 mm | 24 mm | 10-0-10 mm | 0.1 mm | with cross hair |  |
| PB.5045 | 7x | Ø 18 mm | 24 mm | 10-0-10 mm | 0.1 mm | With 5 interchangeable scales for angle, thickness and linear measurements |  |
| PB.5046 | 10x | Ø 20 mm | 35 mm | 15-0-15 mm | 0.1, 0.5 and 1.0 mm |  |
|
| PB.5047 | 10x | Ø 25 mm | 30 mm | 15-0-15 mm | 0.1, 0.5 and 1.0 mm |  |
|
| PB.5048 | 4x | Ø 30 mm | 65 mm | 25-0-25 mm | 0.1, 0.5 and 1.0 mm |  |
$$$$$
APPLICATIONS
Ideal for jewelers and gemologists, watchmaking, offset and flexographic printing, dentistry, surgery, geology, biology, meteoritics, electronics, tattooing, numismatists, coin collectors and philatelists and stamp collectors
PB.5044 Measuring magnifier 7x. Eyepiece Ø 18 mm. Field of view 24 mm. Measuring scale 10-0-10 mm divided into 0.1 mm and crosshairs
PB.5045 Measuring magnifier 7x. Eyepiece Ø 18 mm. Field of view 24 mm. Measuring scale 10-0-10 mm divided into 0.1 mm and crosshairs. With 5 interchangeable scales for angle, thickness and linear measurements (see image next page)

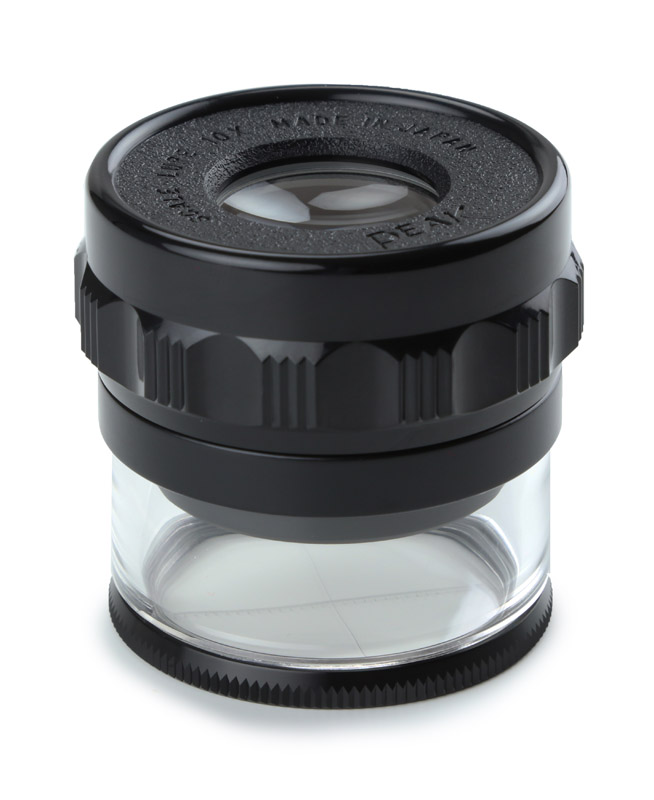

PB.5046 Measuring magnifier 10x. Eyepiece Ø 20 mm. Field of view 35 mm. Measuring scale 15-0-15 mm with 0.1, 0.5 and 1.0 mm graduations
PB.5047 Measuring magnifier 10x with LED. Eyepiece Ø 25 mm.
Field of view 30 mm. Measuring scale 15-0-15 mm divided into 0.1, 0.5 and 1.0 mm.
White LED illumination

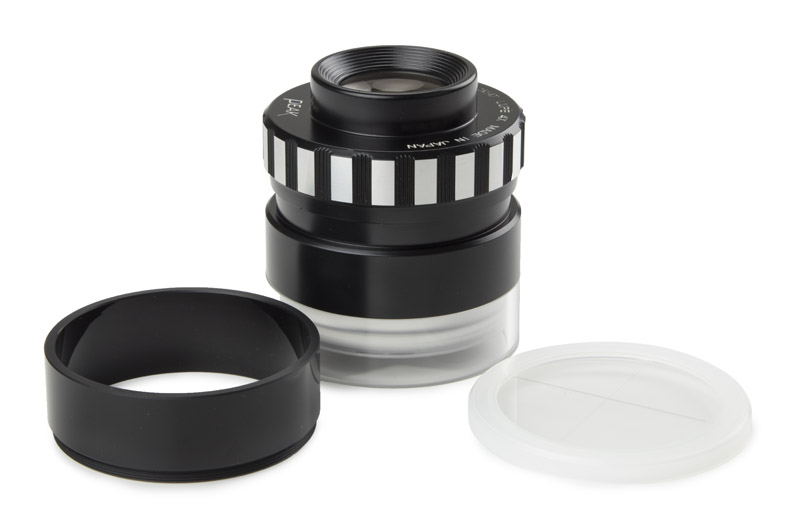

PB.5048 Measuring magnifier 4x. Eyepiece Ø 30 mm. Field of view 65 mm. Measuring scale 25-0-25 mm with 0.1, 0.5 and 1.0 mm graduations
