MicroBlue

EYEPIECE(S)
• Wide field WF 10x/18 mm eyepiece(s)
• Secured and with pointer for monocular versions

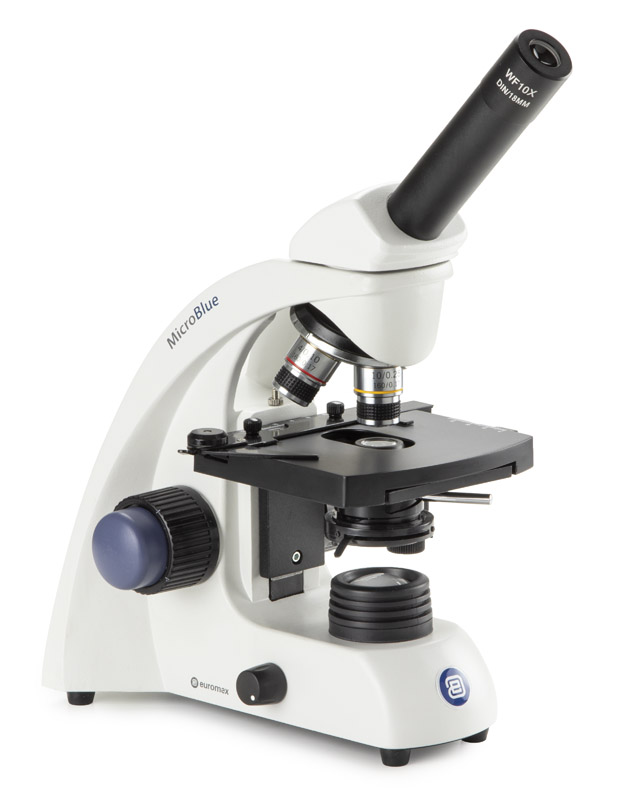

Photo's (from left to right) Monocular head, binocular head, trinocular head, digital monocular head and digital LCD

HEAD
• Monocular models with 45° inclined tubes
• Binocular models have 45° inclined tubes, adjustable interpupillary distance between 48 and 75 mm and a ± 5 diopter adjustment on left tube

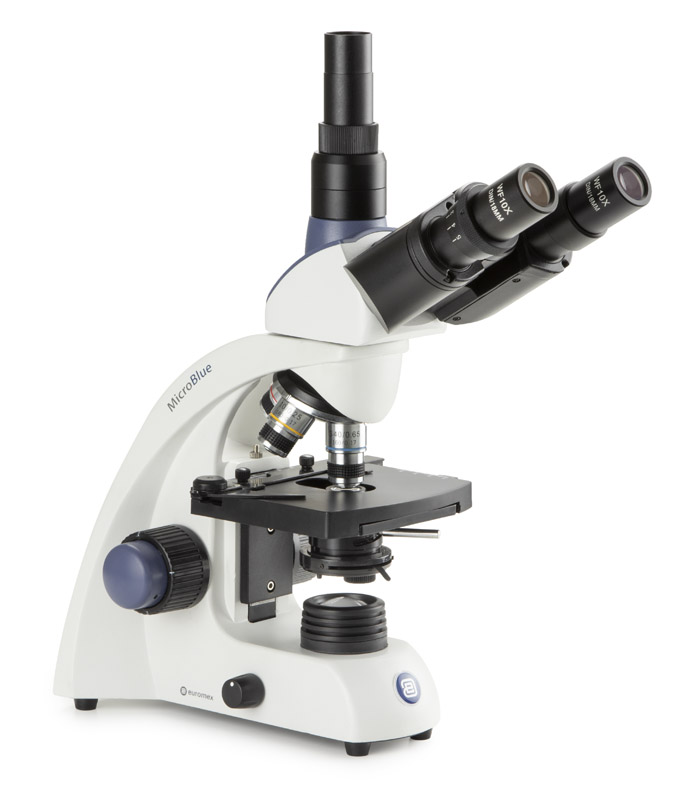

• Trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
• The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
• Two digital heads are available:
An integrated 1.3 MP 1/2.5” CMOS sensor USB 2.0 camera, 1272 x 952 pixels
An integrated 5.0 MP 1/2” CMOS sensor USB 2.0 camera, 2560 x 1920 pixels
• LCD version with 5.6” LCD screen
• All heads are 360° rotatable and secured

NOSEPIECE
Revolving nosepiece for three or four reversed objectives on ball bearings

OBJECTIVES
• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65. Models with S60X or S100x oil immersion are also available
• The S40x, S60x and S100x oil immersion objectives are spring loaded

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3 mm per rotation, total travel approximately 15 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives

STAGE

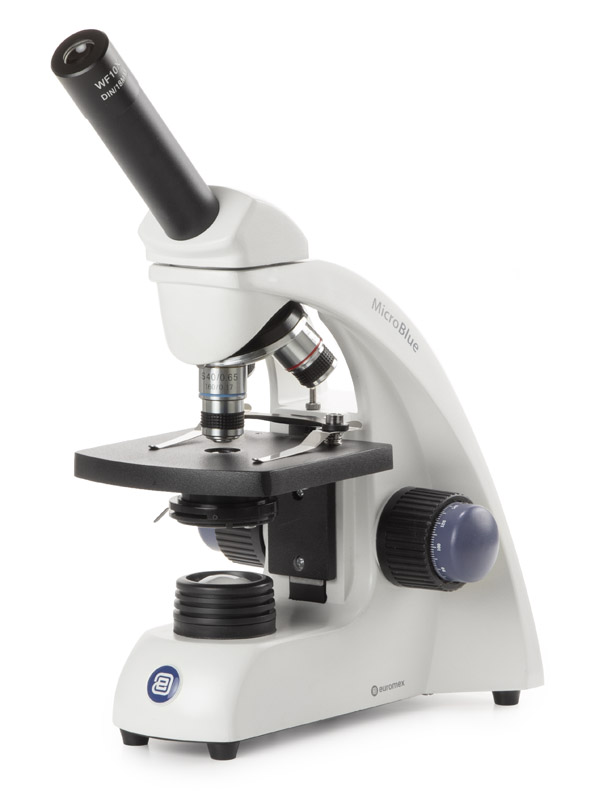

All models are supplied with 115 x 100 mm stage with integrated 55 x 20 mm X-Y mechanical stage, except for the basic model MB.1001 which is supplied with a 105 x 105 mm stage and two non-removable clamps

CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder, except for the MB.1001 model and MB.1001-LCD models which are equipped with a single N.A. 0.65 condenser with built-in iris diaphragm
