Oxion materials science

Highlights

• Trinocular models
• HWF 10x/22 mm eyepieces
• Reversed quintiple nosepiece
• Plan M-iOS objectives
• Transmitted 3 W NeoLED illumination
• Reflected 3 W NeoLED illumination
• Polarization and analyzer filters

MODELS	Trinocular	M-IOS 5x/10x/20x/50x objectives	M-IOS 100x objective	Transmitted illumination 3W NeoLED	Reflected illumination 3W NeoLED

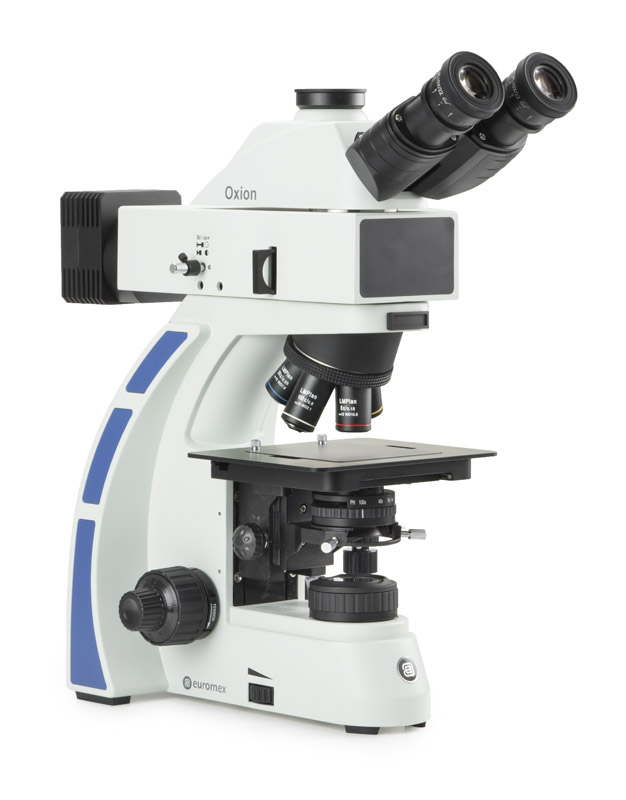

OX.3240	•	•		•	•

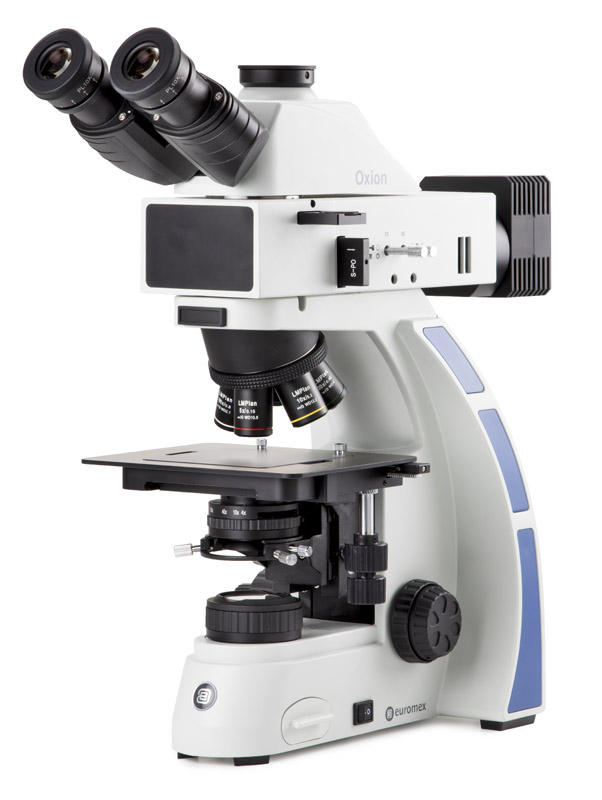

OX.3245	•	•	•	•	•

$$$$$

EYEPIECES
HWF 10x/22mm eyepieces. All eyepieces can be secured

HEAD
Trinocular Siedentopf head with 30° inclined tubes. Interpupillary distance from 48 to 75 mm. Diopter ± 5 diopter adjustment on both eyepieces. A unique rotating system allows the ergonomical positioning of both tubes in an upper (431 mm) and in a lower position (397 mm)

NOSEPIECE
Reversed nosepiece for a maximum of 5 objectives on ball bearings

OBJECTIVES (IOS-iINFINITY CORRECTED SYSTEM)
Standard configurations equipped with infinity corrected DIN long working distance LWD plan M-IOS 5x/0.14, 10x/0.25, 20x/0.40 and LWD plan semi apochromatic M-IOS 50x/0.55 and 100x/0.80 objectives

FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control

STAGE
• 180 x 145 mm stage with integrated mechanical 78 x 45 mm X-Y stage
• Is supplied with plain metal and plain glass inserts (see photo on the right)

CONDENSER (FOR TRANSMITTED ILLUMINATION)
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

TRANSMITTED ILLUMINATION
All models are supplied with 3 W adjustable NeoLED illumination with integrated 100-240 V power supply. Köhler illumination with field diaphragm

REFLECTED EPI-ILLUMINATION
Intensity adjustable 3 W NeoLED Köhler illumination with external 110-240 V power supply. Push-pull type 90° rotatable polarizer and fixed analyzer. Built-in condenser with field and aperture iris diaphragm. Oblique lighting feature. Supplied with blue and green filter

(Photo: details of reflected illumination selector)

PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse and user manual.
All packed in a polystyrene box

%%%%%

	AE.3210 HWF 10x/22 mm eyepiece
	AE.3215 HWF 15x/16 mm eyepiece
	AE.3223 HWF 10w/22mm eyepiece with 10mm/100 micrometer reticule
	AE.3225 Pair of eyecups
	AE.3172 Infinity plan PL-M 5x/0.15 IOS objective. Working distance 20.5 mm
	AE.3173 Infinity plan PL-M 10x/0.25 IOS objective. Working distance 16 mm
	AE.3175 Infinity plan PL-M 20x/0.40 IOS objective. Working distance 7.8 mm. No coverglass correction
	AE.3177 Infinity plan semi apochromatic PL-M 50x/0,55 IOS objective. Working distance 7.9 mm.
	AE.3179 Infinity plan semi apochromatic PL-M 100x/0.80 IOS objective. Working distance 2.1 mm.
	AE.3193 Analyzer for reflected illumination unit
	AE.3206 Green interference 520-570 nm filter for reflected illumination
	AE.3207 Red interference 630-750 nm filter for reflected illumination
	AE.3208 White color balance interference filter for reflected illumination
	AE.5127 Standard 23.2 mm tube for Oxion (revision 1)
	OX.9810 C-mount 1x photo adapter for Oxion (revision 2)
	OX.5700-ADD Oxion Ergo Head Add-on (replacing original head)
	AE.3197-ADD Oxion ceramic stage Add-on (replacing original stage)
