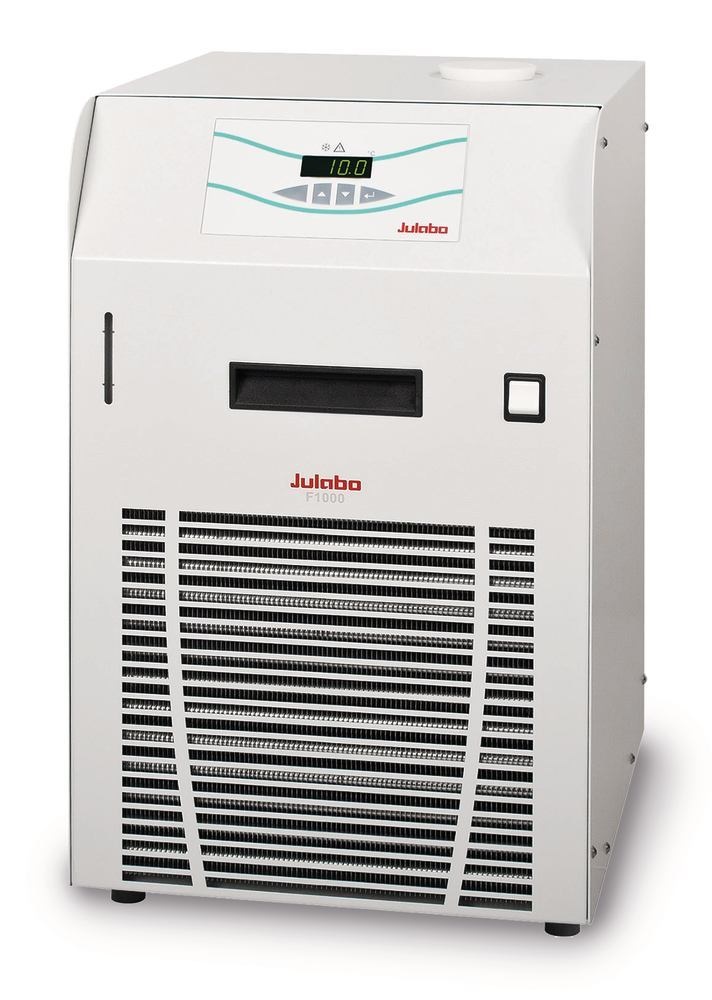

Recirculation chiller F-series, 20 °C: 1000 W 10 °C: 700 W 5 °C: 550 W 0 °C: 250 W, F1000

Compact circulation cooler model F1000 incl. 2 hosetules suitable for hoses with 8 and 12 mm inner Ø Applications: rotary evaporator, Soxhlet devices, distillation plants, gas chromatographs etc. For external, closed applications. Equipment: LED temperature indication, indication resolution 0.1 °C PID temperature control Drain valve for easy draining Level indication Technical data: Model ➀ F250 ➁ F500 F1000 Working temperature (°C) -10 to +40 0 to +40 Temperature constant (K) ±0.5 Heating power (W) 0 Cooling capacity (W) 20 °C 10 °C 5 °C 0 °C -5 °C 250 220 210 180 90 500 400 300 250 - 1000 700 550 250 - Max. pump pressure (mbar) 350 500 1000 Max. pump capacity (l/min) 15 24 23 Filling volume (l) 1.7 to 2.6 5 to 7.5 7 to 9.5 Dimensions W x D x H (mm) 240 x 400 x 520 375 x 440 x 590 375 x 490 x 640 Weight (kg) 27 34 45 Mains voltage connection 230 V, 50 Hz Delivery incl. 2 hosetules suitable for hoses with 8 and 10 mm inner Ø (model F250) or hoses with 8 and 12 mm inner Ø (model F500, F1000).
