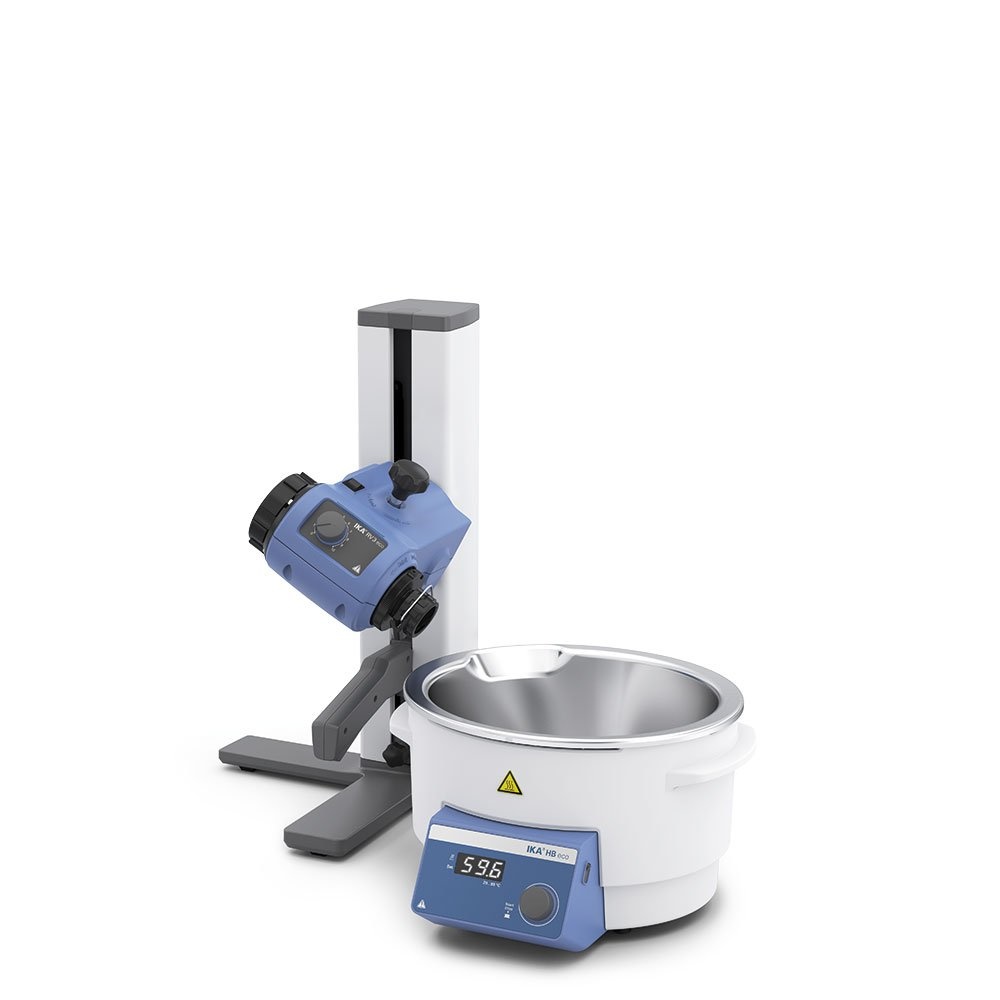

Rotary evaporators RV 3 FLEX
Product information
Technical specifications
Information
The new RV 3 Rotary Evaporator is the ideal entry-level model of the IKA rotary evaporator portfolio. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction.
- New: 4 l heating bath for up to 99°C
- water heating bath with digital temperature display and carrying handles
- mechanical lift end-point safety stop
- locking mechanism: red indicator shows unlocked position of the vapor tube
- manual lift for precise positioning of the glassware
- adjustable immersion angle
- single-handed manual lift handling, suitable for left and right-handed operators
- stepless speed setting with dial control and speed display
- speed range: 20-300rpm
- low device voltage (24V) ensures user safety
- flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
- high-efficiency condenser with 1500 cm² cooling surface - low space requirements
- compatible with the entire range of IKA RV 10 glassware
Scope of delivery
- RV 3 ECO
- HB eco S099
- RV 05.10 Balljoint clamp
- RV 10.88 Clamp NS 29
- RV 10.70 Vapor tube (NS 29/32)
- RV 10.8001 Seal
Motor principle | DC |
Speed range | 20 - 300 rpm |
Speed tolerance set rotation speed < 100rpm | 1 ±rpm |
Speed tolerance set rotation speed > 100rpm | 1 ±% |
Lift | manual |
Stroke | 150 mm |
Heating temperature range | room temp. - 99 °C |
Dimensions (W x H x D) | 440 x 530 x 330 mm |
Weight | 12 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 20 |
Voltage | 100 - 240 V |
Frequency | 50/60 Hz |
Power input | 1400 W |
