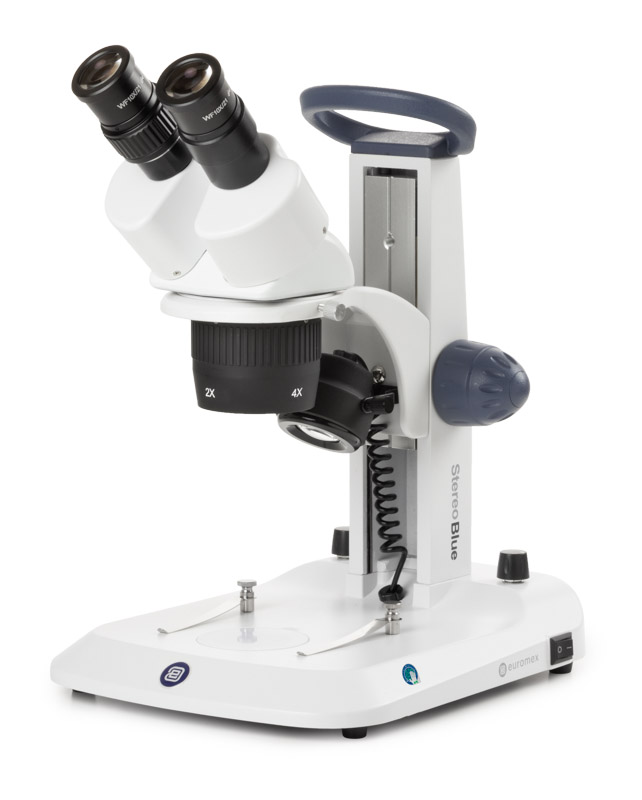

StereoBlue

Euromex BlueLine offers a high-quality range of stereo microscope models, which are specifically meant for laboratory and higher education use

StereoBlue microscopes are especially developed for laboratory applications, education and greatly appreciated by biologists, entomologists, geologists, mechanical and electronic engineers and other professionals like jewelers and dental technicians. These microscopes are available with dual pair of objectives or zoom objective for magnifications from 3.5x to 135x and incident and transmitted LED illuminations

Icons are used to indicate the several functions of a microscope.
Click and find more details about the meaning of each icon

Highlights

• Designed for professional use
• Crisp, high resolution images
• Robust and sturdy
• Dual magnifications or Zoom models
• Available with ergonomic rack & pinion, pillar, universal (single arm) and boom stand (dual arm)
• LED illumination
• Ergonomic carrying grip
• 5 years warranty
• Coming soon: provided with APL (Anti-bacterial Protection Layer)

MODELS	Binocular	Trinocular	1x/3x objective	2x/4x objective	0.7 - 4.5x zoom	Rack & pinion stand 3W LED	Pillar stand 3W LED	Universal stand	Boom stand on heavy base plate	30 LED right light	Weight (kg)
SB.1302	•		•			•					3.3
SB.1302‑P	•		•				•				4.2
SB.1402	•			•		•					3.3
SB.1402‑P	•			•			•				4.2
SB.1902	•				•	•					3.6
SB.1902‑P	•				•		•				4.4
SB.1902‑U	•				•			•			15.4
SB.1902‑B	•				•				•		21.9
SB.1903		•			•	•					3.7
SB.1903‑P		•			•		•				4.5
SB.1903‑U		•			•			•			15.5
SB.1903‑B		•			•				•		22.0
SB.3903		•			•	•				•	3.7
SB.3903‑P		•			•		•			•	4.5

$$$$$

EYEPIECES
Pair of WF10x/21 mm eyepieces supplied with eyecups

HEAD
• Binocular or trinocular 45° inclined tubes.
• Diopter adjustment on both eyepieces, except the models. SB.1302-P, SB.1402-P and SB.1302, SB.1402, which have diopter adjustment on one side.
• Interpupillary distance adjustable between 55 mm and 75 mm.
• Trinocular head is supplied with a fixed light path beamsplitter (50:50)

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

DUAL MAGNIFICATION MODELS
• Nosepiece with dual 1x/3x or 2x/4x revolving objectives
• Magnifications 10x/30x or 20x/40x (can be enlarged to 135x)
• Field of view 21 mm/6.9 mm or 10.5 mm/5.2 mm
• Working distance 100 mm

ZOOM MODELS
• Zoom Stereo 0.7x to 4.5x parafocal objective
• Magnification from 7x to 45x
• Field of view 29.9 mm to 4.6 mm
• Working distance 100 mm

MAGNIFICATIONS
Working distance and field of view specifications

STANDS
• The rack & pinion and pillar stands of the StereoBlue are equipped with ergonomically designed flat bases, complete with two object clamps and Ø 60 mm transparent and black/white stage plate.
• The coarse adjustment is equipped with tension control
• The ergonomically designed universal (single arm) and boom stand (dual arm) are ideal for looking at large samples or working under the microscope
• The stands are alloy metal casted with hardened coating
