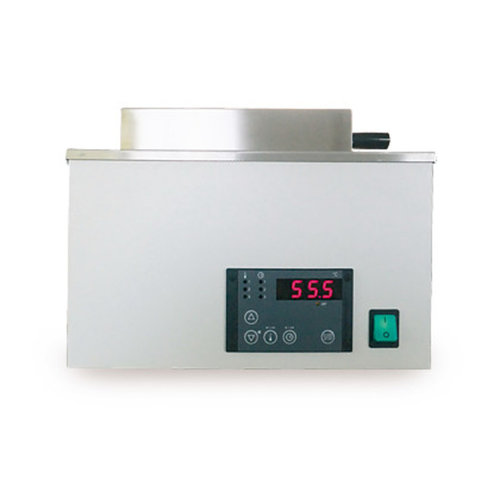

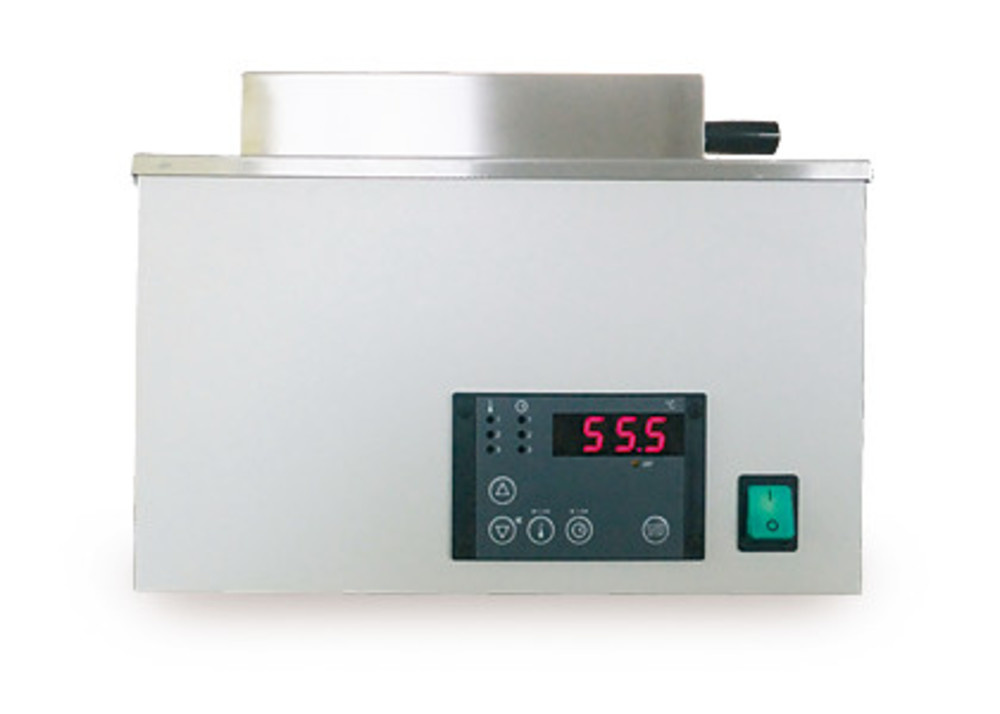

Water bath WBT series Angular bath opening, 2-6 l, WBT6

Water bath WBT 6 workedmp. +25 - +100 °C, 2 - 6 l incl. angled lid For a working temperature range of 25 to 100 °C. Inner vessel of stainless steel Microprocessor-controlled temperature controller Digital temperature indication Adjustable lower and top star setpoint limiter alarm optically and/or acoustically (adjustable) With dry running protection Emptying via spout in the bottom with closing screw. Optionally available is a drain valve (please.b. order separately) Water bath WBT1 with round flat lid, all other models have an angled lid. Heating on the bottom free lying. Delivery incl. removable inlay base. Technical data: Model WBT1 WBT6 WBT12 WBT22 Effective space Volume (l) approx. 1-2 approx. 2-6 approx. 4-12 approx. 6-22 Bath opening (mm) Ø 130 215 x 230 390 x 230 455 x 230 Bath depth (mm) 120 120 120 170 Device Width (mm) 230 320 490 570 Depth (mm) 240 340 340 Height with lid (mm) 220 260 310 Temperature constant (±K) 0.25 0.60 0.60 0.60 Heating capacity (W) 700 1000 1600 2000 Weight (kg) 5 7.5 10.5 12.5 Mains connection 230 V, 50-60 Hz
