Delphi-X Inverso

Staffelkorting
  • Achetez 2 à €20.647,16 chacun et économisez 5%
Quantité
Produit
Prix
Details
DI.1053‑PLPHFi
€21.733,85 Sans les taxes
€26.297,96 Taxes incluses
Plus
Code de l'articleDI.1053‑PLPHFi
SKUDI.1053‑PLPHFi
Livraison3-4 days
DI.2053-PLPHFi
€21.733,85 Sans les taxes
€26.297,96 Taxes incluses
Plus
Code de l'articleDI.2053-PLPHFi
SKUDI.2053-PLPHFi
Livraison3-4 days
Commandé avant counting..., livré demain
Tous dans le panier
Staffelkorting
  • Buy 2 and save 5%
Informations sur le produit
Handleiding
Spécifications techniques
accessoires
Informations
  • Life science applications
  • Observation of tissue cultures, living cells
  • Brightfield, phase contrast
  • DIC (differential interference contrast)
  • Long working distance IOS plan achromatic objectives
  • Revolving sextuple nosepiece
  • 10 W LED or 100 W halogen transmitted illumination
  • Backwards tilting condenser arm
  • Easy placement of large objects
MODELS LWD Plan phase 10x/20x/S40x objectives 100 W Halogen illumination 10 W LED illumination
DI.1053‑PLPHFi •   •
DI.2053‑PLPHFi • •

$$$$$

EYEPIECES
Pair of DIN HWF plan 10x/25 mm or 10x/22 mm eyepieces with diopter adjustment

HEAD
Trinocular 45° inclined tubes. Interpupillary distance of 47 to 78 mm. Trinocular head with 100-0, 80/20 and 0/100 positions

NOSEPIECE
Revolving sextuple nosepiece on ball-bearings. The nosepiece can be equipped with DIC prisms for the 10x/20x and 40x objectives

OBJECTIVES
High numerical infinity semi-apochromatic long working distance plan phase Fluarex PLPHFi 10x/0.30, 20x/0.45, S40x/0.60 IOS objectives enable the sub-cellular structures. An optional 4x/0.13 and 60x/0.70 IOS objective is also available. The 20x, 40x and optional 60 objectives are equipped with collar adjustment ring for glass thicknesses from 0 to 1.2 mm

Fluarex™ objectives are made of low-absorption glass
Fluarex™ is a trademark of Euromex microscopen bv
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAGE
Stage 340 x 230 mm, equipped with a coaxial mechanical 130 x 85 mm X-Y stage. Supplied with:
•  Metal insert for ø 38 mm cell culture dish
•  Metal insert for ø 54 mm cell culture dish or 76 x 26 mm slides
•  Metal insert for Multiwell plates (127.76  x 85.48 mm)
•  Metal insert for Teraski plates (83.3 x 58.0 mm)
•  Optional universal cell culture holder

CONDENSER
Rotating N.A. 0.55 condenser with iris diaphragm. Working distance is 26 mm. Supplied with phase contrast annuli for 10x/20x, 40x and 60x objectives and the DIC prisms for the 10x/20x/40x and 60x objectives. Three filter holders allow the insertion of Ø 38 mm filters in the optical path. The arm with condenser can be tilted backwards for convenient access to the stage. This allows easy placement of large objects like flasks and Petri dishes

LENS CHANGER
A lens changer with a 1.5x lens allows intermediary magnifications of 1.5 times the standard objective magnifications. Switching from 20x to 30x or 40 to 60 and from 60x to 90x magnification can be done without the need to re-focus on the sample

FLUORESCENCE FILTER SET WHEEL
The Delphi-X Inverso is supplied with a 6-position fluorescence filter set wheel. See photo below

Delphi-X_Inverso_Detail-2

FOCUS ADJUSTMENT
Coaxial 10 mm coarse and fine adjustments, 1 μm precision and with friction adjustment

ILLUMINATION
Transmitted 10 W LED or 100 W halogen Intensity adjustable with internal 100-240 V power supply. Fuse holder 5 A / 250 V. Delphi-X Inverso can be extended with fluorescence equipment

PACKAGE CONTENT
Supplied with metal insert for Ø 38 mm cell culture dish and a metal insert for Ø 54 mm cell culture dish with 76 x 26 mm slides, metal insert for Multiwell plates, metal insert  for Teraski plates, blue and green interference Ø 45 mm filters, power cord, dust cover, green filter and alignment telescope and user manual

ICSI SET
(Intracytoplasmic sperm injection)

•  Perfect for inexperienced users in need of training practice as well as for professionals
•  Complete manual system
•  Large movement range
•  Easy micropipette repositioning
•  Adjustable micropipette holder angle between 20° and 40°
•  Micropipette holder fixing knob reduces vibration and provides easy handling of the sperm
•  Easy installation and service
•  3D Hydraulic manipulation joysticks for smooth movement
•  Pneumatic Air Injector for ICSI and holding
•  No service required for injector
•  Identical sensitive injectors on both sides and interchangeable
•  Top quality for affordable price
•  Medical device CE mark
•  Movement range: X/Y/Z: 20 mm each, 1 mm for one complete turn of the handle
•  Optional heating stage with controller

Set includes two 3D hydraulic joysticks, two pipette setup mechanisms, one connection bar with moving handle, two air injectors with tubing and pen type micromanipulation, pipette holder, two metal plates for injectors, one set of Allen wrenches, one ruler for mechanic home position adjustment. Unit is packed in a solid carry case

HEATING STAGES AE.8010 AND AE.8015
Heating glass stage for Euromex microscope stage with 110 mm circular hole. The glass plate fits the circular opening of the X-Y stage and enables a flat glass object-plate with constant temperature. The stage has an aluminum frame for superior resistance and flatness. Glass thickness 0.5 mm. Plate diameter 110 mm

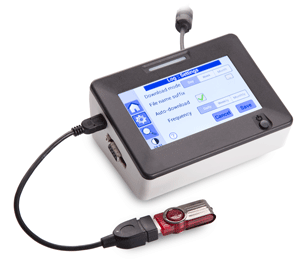

Controller AE.8010

AE.8010

•  2-Channel Temperature Controller with touchscreen interface
•  One controller can control up to two devices
•  On-board data logging allows for recording temperature as a function of time and logging calibration events and alarms
•  The password protected controller is equipped with routines to re-calibrate the sensors against certified thermometers
•  Temperature range: from ambient to 60°C
•  Temperature accuracy on specimen: ± 0.3°C
•  4.3’’ touch screen interface
•  Alarm buzzer and external alarm connector
•  Self calibration routines enable high temperature accuracy

Controller AE.8015
(photo: AE.8015 with heating stage)

AE.8015_O

This is the economic and compact single-channel Temperature Controller version of the AE.8010. This model combines performance and simplicity at a economic price
•  Single channel Temperature controller with LCD display temperature control push buttons.
•  Small and robust while maintaining reliability
•  Straight forward in usage
•  Temperature range: from ambient to 60°C
•  Set point Resolution: 0.1°C
•  One-Point Temperature Calibration and Adjustment

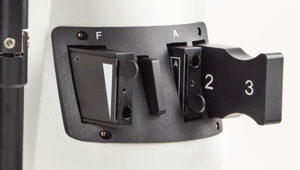

Delphi-X_Inverso_Detail-2B

Filters in sliders

%%%%%

No image DI.6010
Super wide field SWF 10x/22 mm focusable eyepiece for Delphi-X Inverso, 30 mm diameter tube
No image DI.6210
Super wide field SWF 10x/22 mm focusable eyepiece for Delphi-X Inverso, 30 mm diameter tube
No image DI.6012
Wide field WF 12.5x/17.5 mm eyepiece for Ø 30 mm tube for Delphi-X Inverso
No image DI.6015
Wide field WF 15x/16 mm eyepiece for Ø 30 mm tube for Delphi-X Inverso
No image DI.6020
Wide field WF 20x/12 mm eyepiece for Ø 30 mm tube for Delphi-X Inverso
No image DI.6099-L
Eyeshade for eyepieces
No image DI.8704
Infinity Plan Semi-Apochromatic Phase contrast PLPHFi-Apo 4x/0.13 objective, working distance 16,8 mm. Cover glass correction 1.2 mm
No image DI.8710
Infinity Plan Semi-Apochromatic Phase contrast PLPHFi-Apo 10x/0.30 objective. Working distance 10.2 mm. Cover glass correction 1.2 mm
No image DI.8720
Infinity Plan Semi-Apochromatic Phase contrast PLPHFi-Apo 20x/0.45 objective with collar ring for adjustment of working distance between 7.5 to 8.8 mm. Cover glass correction 1.2 mm
No image DI.8740
Infinity Plan Semi-Apochromatic Phase contrast PLPHFi-Apo 40x/0.60 objective with collar ring for adjustment of working distance between 3 to 4.4 mm. Cover glass correction 1.2 mm
No image DI.9690-10
DIC prism for rotating disc condenser for Life Science Delphi Inverso models. To be used with Plan Semi-Apo 10x objective
No image DI.9690-20
DIC prism for rotating disc condenser for Life Science Delphi Inverso models. To be used with Plan Semi-Apo 20x objective
No image DI.9690-40
DIC prism for rotating disc condenser for Life Science Delphi Inverso models. To be used with Plan Semi-Apo 40x objective
No image DI.9695
DIC polarization filter for transmitted light
No image DI.9200-6
Fluorescence attachment, 6-positions, UV shield; 100 W HBO mercury vapor lamp, with collimating lens, with external PSU BUT without objectives, without filter sets and without empty cubes
No image DI.9745-6
Standard filter set for Blue excitation EX 460-495 nm (BP) DM 505 EM 510 nm (LP). Needs empty cube
No image DI.9746-6
Standard filter set for green excitation EX 510-550 nm (BP) DM 570 EM 575 (LP) Needs empty cube
No image DI.9747-6
Standard filter set for Violet excitation EX 400-410 nm (BP) DM 455 EM 460 (LP) Needs empty cube
No image DI.9748-6
Standard filter set for UV excitation EX 330-385 nm (BP) DM 410 EM 420 (LP) Needs empty cube
No image DI.9749
Empty cube for Delphi-X Observer Fluorescence attachment
DI.9750.19000
Fluorescence filter set EX375 (BP28: 361-389 nm) DM415 (LP) EM435 (LP) optimized for UV/DAPI, Calcofluor White. Needs empty filter block
DI.9750.19006
Fluorescence filter set EX560 (BP40: 540-580 nm) DM600 (LP) EM610 (LP) optimized for FM 4-64, Turbo FP650. Needs empty filter block
DI.9750.19008
Fluorescence filter set EX450 (BP50: 425-475 nm) DM485 (LP) EM495 (LP) optimized for Auramine Longpass. Needs empty filter block
DI.9750.19010
Fluorescence filter set EX480 (BP30: 465-495 nm) DM505 (LP) EM600 (LP) optimized for FM 1-43 / 4-64 , Pulsar 650 and Chlorophyll Longpass. Needs empty filter block
DI.9750.19011
Fluorescence filter set EX405 (BP30: 390-420 nm) DM505 (LP) EM450 (LP) optimized for Coumarin and Pacific Blue Longpass. Needs empty filter block
DI.9750.19012
Fluorescence filter set EX375 (BP28: 361-389 nm) DM415 (LP) EM515 (LP) optimized for FluoroGold and CalcoFluor White Longpass. Needs empty filter block
DI.9750.39000
Fluorescence filter set EX375 (BP28: 361-389 nm) DM415 (LP) EM460 (BP50: 435-485 nm) optimized for DAPI, Hoechst, AlexaFluor 350. Needs empty filter block
DI.9750.39001
Fluorescence filter set EX435 (BP20: 425-445 nm) DM455 (LP) EM480 (BP30: 465-495 nm) optimized for AmCyan, Atto 425, Cerulean, CFP, ECFP fluorophore. Needs empty filter block IS.9749
DI.9750.39002
Fluorescence filter set EX480 (BP30: 465-495 nm) DM505(LP) EM535 (BP40: 515-555 nm) optimized for Acridine Orange + DNA, Alexa Fluor 488™, Atto 488, Azami Green, BODIPY FL/pH7.2, Calcein, Calcium, Green™-1, Cy2™, DiO, DyLight 488, EGFP, Emerald, GFP, FAM, FITC, Fluo-4, GFP, LysoTracker Green/pH 5.2, MitoTracker Green, FM/MeOH, mWasabi, Oregon Green™ 488, SYBR® Green I, SYTO 9/DNA, ZsGreen fluorophore. Needs empty filter block
DI.9750.39003
Fluorescence filter set EX495 (BP20: 485-505 nm) DM515 (LP) EM540 (BP30: 525-555 nm) optimized for Alexa Fluor 514™, Citrine, EYFP/pH 7, F/lAsH-CCPFCC, mCitrine, Oregon Green™ 514, Rhodamine 123, Topaz. Needs empty filter block
DI.9750.39004
Fluorescence filter set EX540 (BP25: 528-553 nm) DM565 (LP) EM605 (BP55: 578-633 nm) optimized for Alexa Fluor 546™, Alexa Fluor 555™, Atto 550, CAL, Fluor® Red 590, Cy3™, DiI, DsRed, DyLight 549, MitoTracker Orange/MeOH, Resorufin, Rhod-2, TagRFP, TAMRA tdTomato, Tetramethylrhodamine, isothiocyanate, TRITC. Needs empty filter block
DI.9750.39005
Fluorescence filter set EX540 (BP25: 528-552 nm) DM565 (LP) EM 620 (BP60: 590-650 nm) optimized for TRITC-red-shifted, Ethidium homidimer-1/DNA, Propidium Iodide. Needs empty filter block
DI.9750.39007
Fluorescence filter set EX620 (BP50: 595-645 nm) DM655 (LP) EM 690 (BP50: 665-715 nm) optimized for Alexa Fluor 647™, Allophycocyanin (APC), Atto 647N, Cy5™, DiD, Draq5, DyLight 649, MitoTracker Deep Red 633/MeOH, Nile Blue, Quasar® 670, SYTO® 60, TO-PRO™-3. Needs empty filter block
DI.9750.39008
Fluorescence filter set EX420 (BP40: 400-440) DM455 (LP) EM 535 (BP40: 515-555) optimized for Lucifer Yellow/Tetracycline/AlexaFluor 430. Needs empty filter block
DI.9750.39009
Fluorescence filter set EX480 (BP30: 465-495) DM505 (LP) EM 620 (BP60: 590-650) for Acridine Orange + RNA, Di-8-ANEPPS, non-radiometric, DiA, Ethidium Bromide, FM™ 1-43, LysoTracker Yellow HCK-123, Pulsar™ 650. Needs empty filter block
DI.9750.39010
Fluorescence filter set EX560 (BP40: 540-580) DM600 (LP) EM635 (BP60: 615-665) optimized for Texas Red, mCherry, AlexaFuor 594. Needs empty filter block IS.9749
DI.9750.49000
Fluorescence filter set EX350 (BP50: 325-375) DM400 (LP) EM460 (BP50: 435-485) optimized for Texas Red, mCherry, AlexaFuor 594. Needs empty filter block IS.9749
No image DI.9810
C-mount 1x adapter voor Delphi-X Inverso microscoop
No image DI.9840
C-mount adapter met hoge resolutie 0.40x objectief voor 1/3 inch C-mount camera
No image DI.9850
C-mount adapter met hoge resolutie 0.50x objectief voor 1/2 inch C-mount camera
